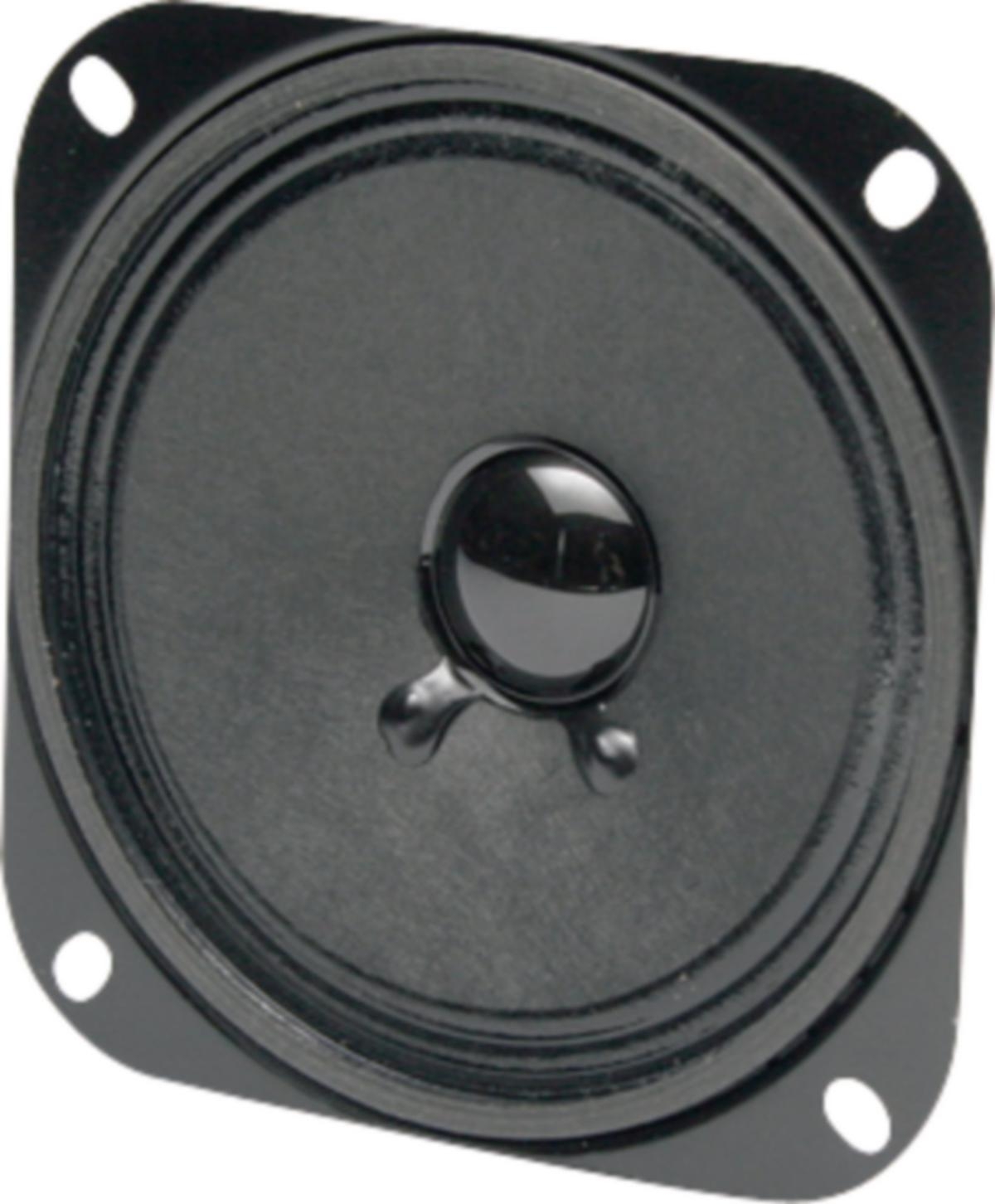

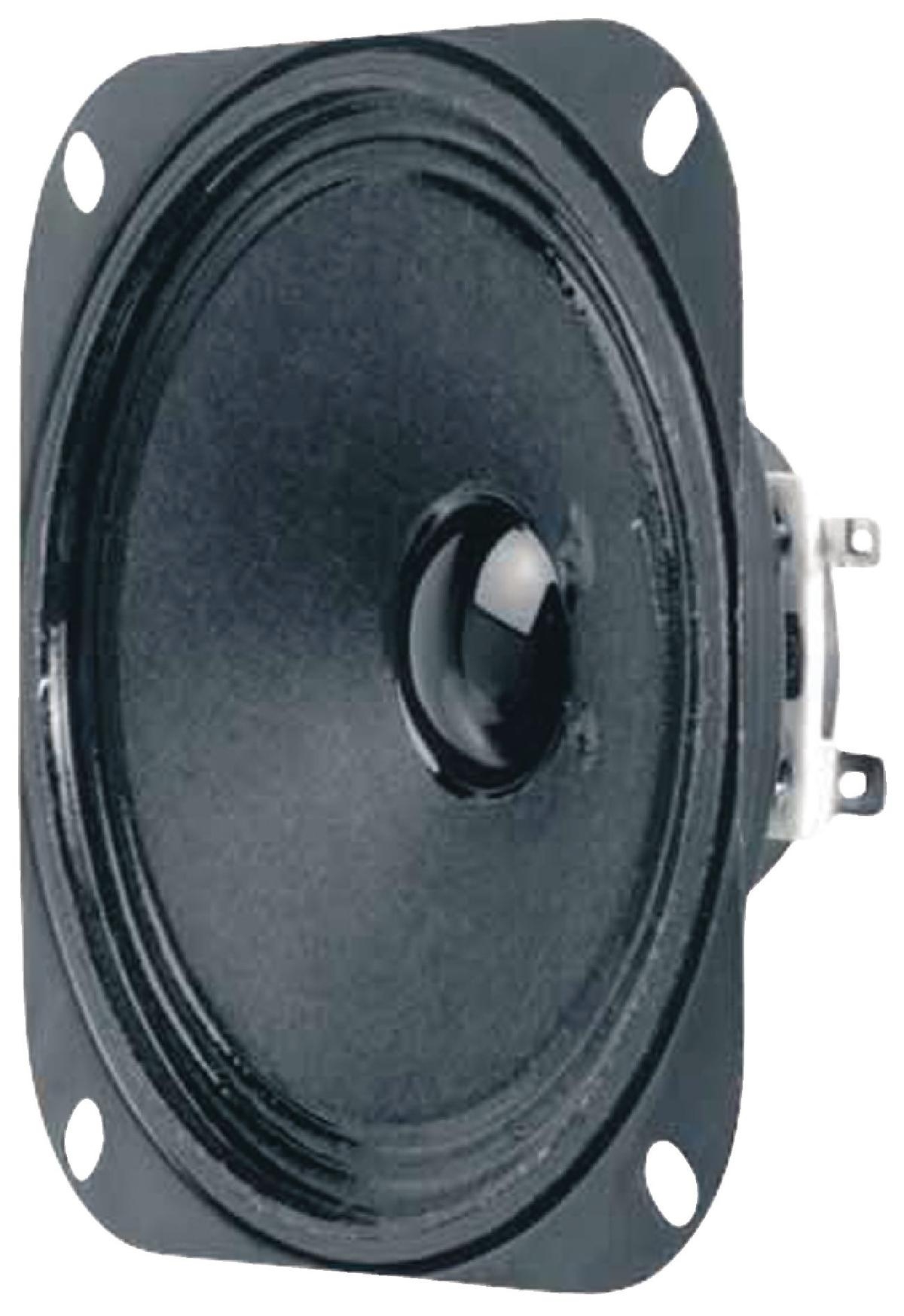

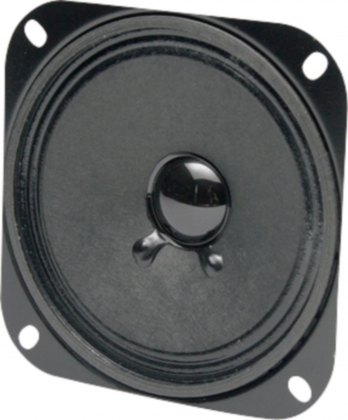

Inbouw Speaker

10cm Breedbandluidspreker, zeer geschikt als inbouwluidspreker in de modelbouw en in electronische apparaten.
• Rated power:20 W
• Maximum power:30 W
• Nominal impedance Z:8 Ohm
• Frequency response:100-13000 Hz
• Mean sound pressure level:90 dB (1 W/1 m)
• Opening angle (-6 dB):92°/4000 Hz
• Excursion limit:+/−1.5 mm
• Resonance frequency fs:188 Hz
• Magnetic induction:0.95 T
• Magnetic flux:135 uWb
• Height of front pole-plate:3 mm
• Voice coil diameter:15 mm
• Height of winding:4 mm

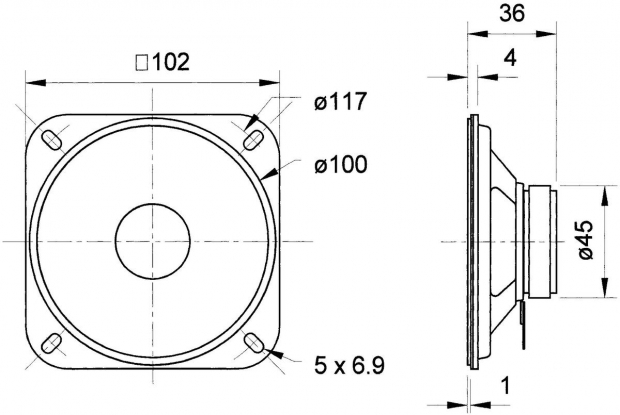

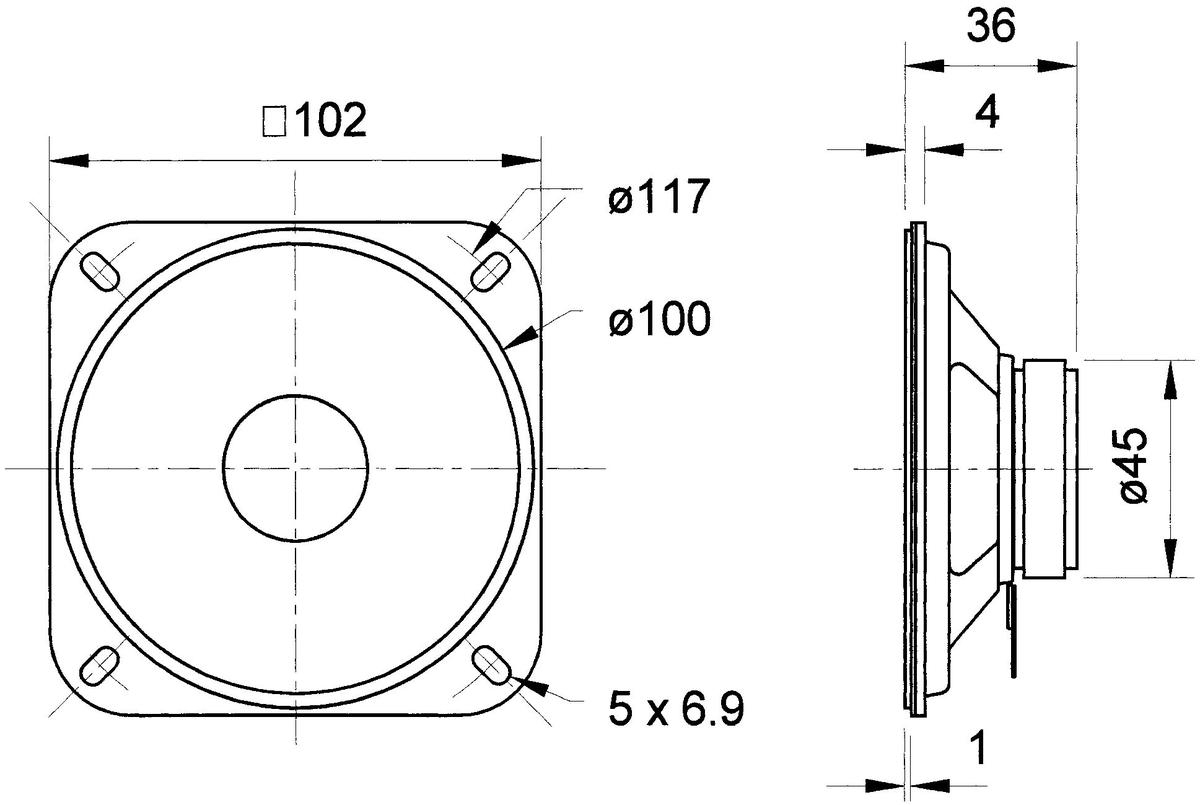

• Cutout diameter:93 mm
• Net weight:0.16 kg
• D.C. resistance Rdc:7.2 Ohm
• Mechanical Q factor Qms:6.27
• Electrical Q factor Qes:2.92
• Total Q factor Qts:1.99
• Equivalent volume Vas:1.7 l
• Effective piston area Sd:56 cm²
• Dynamically moved mass Mms:2 g
• Force factor Bxl:2.0 T m
• Inductance of the voice coil L:0.5 mH
• Connections:5.2 x 0.5 mm (+)
2.8 x 0.5 mm (−)
• Temperature range:−25 ... 70 °C

Merk

Visaton
