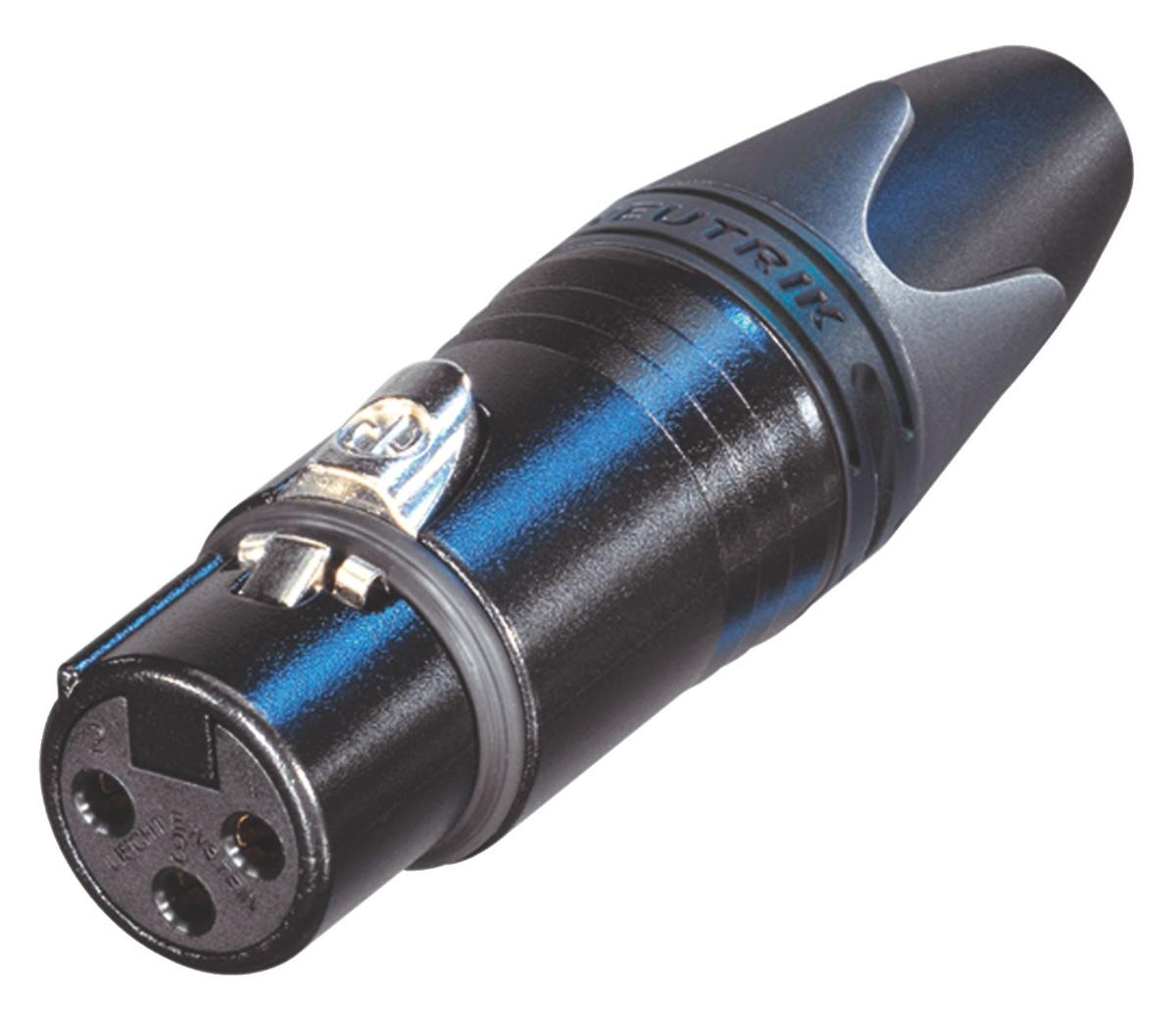

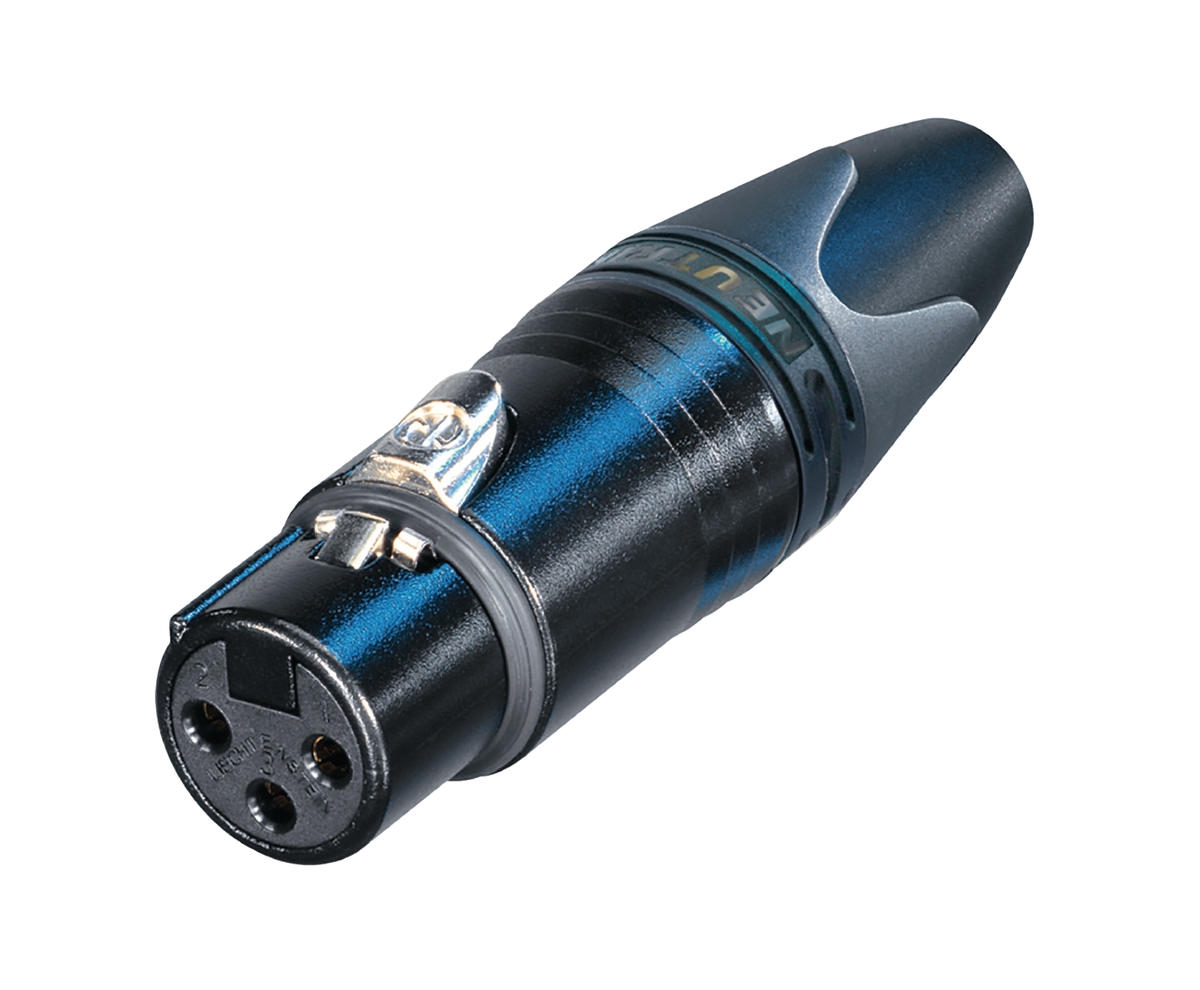

Connector XLR Female Metaal Zwart

3-polige XLR-socket.
Zwarte metalen behuizing en zilveren contacten.
The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.

TECHNICAL DATA

Product
• Connector: Type XLR
• Gender: female

Electrical
• Capacitance between contacts: ≤ 4 pF
• Contact resistance: ≤ 3 mΩ
• Dielectric strength: 1,5 kVdc
• Insulation resistance: > 2 GΩ (initial)
• Insulation resistance: > 1 GΩ (after damp heat test)
• Rated current per contact: 16 A
• Rated voltage: 50 V

Mechanical
• Cable O.D.: 3.5 - 8.0 mm
• Insertion force: ≤ 20 N
• Withdrawal force: ≤ 20 N
• Lifetime: > 1000 mating cycles
• Wire size: max. 2.5 mm²
• Wire size: max. 14 AWG
• Wiring: Solder contacts
• Locking device: Latch lock

Material
• Boot: Polyuretan
• Bushing: Polyamide (PA 6 15% GR)
• Contact plating: 0.2 µm Au hard alloy over 2 µm Ni
• Contacts: Bronze (CuSn8)
• Insert: Polyamide (PA 6.6 30 % GR)
• Locking element: Zinc diecast (ZnAl4Cu1)
• Shell: Zinc diecast (ZnAl4Cu1)
• Shell plating: Black chromium
• Strain relief: Polyacetal (POM)

Environmental
• Flammability: UL 94 HB
• Standard compliance: IEC 61076-2-103
• Protection: class IP 40
• Solderability: Complies with IEC 68-2-20
• Temperature range: -30 °C to +80 °C

Merk

Neutrik
