INGEGOTEN TRANSFORMATOR 1.2VA 2 x 6V / 2 x 0.100A
2060012M
Bestellen
€ 10,95
incl. 21% BTW
Op voorraad in magazijnLevertijd: 2 tot 5 werkdagen
382
Aantal:
In winkelwagentje
Grotere aantallen nodig? Neem contact met ons op
Specificaties
Physical Properties |
Number of Outputs: |
Transformer Type: | Encapsulated |
Elektrische Gegevens |
Nominale Uitgangsstroom: | 0.1 A |
Dielectric Strength: | > 5 kV |
Beveiliging tegen Kortsluiting: | Ja |
Isolation Resistance VDC: | > 5 megohm |
Encapsulated Transformer Output Voltage Rating VAC: | 6 V |
Power Transformer: | 1.2 VA |
Technische Gegevens |
Maximum Temperature for Class E: | 95 °C |
Maximum Temperature Materials: | 120 °C |
Secondary voltage Maximum Voltage at 230V: | 7 % |
Seconday Voltage Minimum Voltage at 230V: | 3 % |
Thermal Class: |
Thermal Fuse Protection Possibility: | Yes |
Certifications: | Creepage Distances and Clearances According to IEC742 |
Type Montage: | Printplaat |
Omgevingsgegevens |
Maximale Omgevingstemperatuur: | 40 °C |
Elektrische Aansluitingen |
Type Afsluitweerstand: | Soldeerpen |
Voeding |
Nominale Ingangsspanning VAC: | 230 V |
Nominale Ingangsfrequentie: | 50/60 Hz |
Basis Productinformatie |
Kleur: | Zwart |

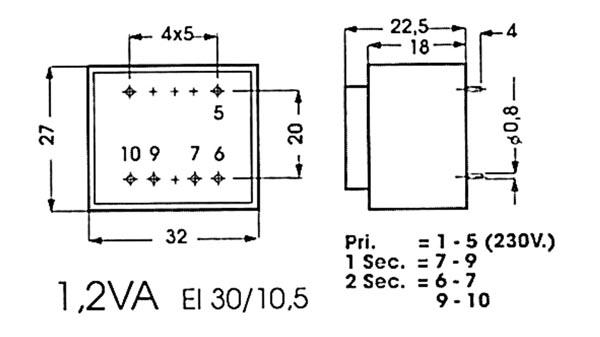

Breedte: | 32 mm |
Hoogte: | 22.5 mm |
Diepte: | 27 mm |
Gewicht: | 71 g |
EAN-code
5410329259150
