CERMET TRIMMER SINGLE-TURN 10E
CERMET TRIMMER SINGLE-TURN 10E
0 CERMET TRIMMER SINGLE-TURN 10E
1 CERMET TRIMMER SINGLE-TURN 10E

Bestellen

€ 4,95 incl. 21% BTW
Op voorraad in magazijnLevertijd: 2 tot 5 werkdagen
5882
Aantal:
In winkelwagentje

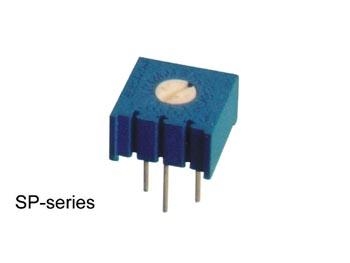

10mm square single-turn trim potentiometers. The cermet technology ensures stability and reliability. These PCB-mounted trimmers are available in different versions, requiring the user to adjust the trimmer either from the top or from the side. All components are sealed to withstand PCB washing solvents.

Kenmerken

  • CITEC 4295P
  • horizontal mounting
  • vertical adjustment
  • pin layout: triangle
  • bereik: 10E to 2M (E3 series)

Specificaties

vermogen:0.5W at 85°C
temperature range:-55°C to +125°C
tolerantie:±10%
working voltage:300Vdc
rotatie:
elektrisch circuit:270°
mechanisch:300°

EAN-code

5410329755454
